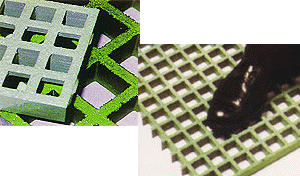

Comparing with other floor materials, Superfrp™ molded grating provides a series of benefits, unmatched impact resistance, while the strength-weight-ratio is only one-fourth of that of steel grating. It is easy to cut and install.

Superfrp™ molded grating is made of continuous fiberglass fully soaked by unsaturated polyester resin with continuous solidification through mould system, whose uniform structure provides perfect bi-directional mechanical properties.

Superfrp™ molded grating has perfect corrosion resistance. Different resin has different property of corrosion resistance. The resins being widely used include orthophthalic polyester resin, isophthalic polyester, vinyl ester resin. Vinyl ester grating provides extremely corrosion resistance.

The surface of Superfrp™ molded grating can be concave top, flat top, grit top,Decorative Pattern Cover,Grit Cover and Smooth Cover.

Superfrp™ Molded Grating Standard Panel
Thickness
(mm)
Panel size
(mm)
Mesh size
(mm)
Bar thick
(mm)
panel
Wt.per m2
Weight
(Kg)
25
1007×2007
40×40
5/6.5
12.8Kg
25.8
1220×3660
38×38
5/6.5
13.4Kg
60.0
1007×4007
40×40
5/6.5
12.8Kg
52.0
1220×3660
25×100
5/6.5
13.8Kg
62.0
1220×3660
38×38/19×19
5/6.5
16.8Kg
75.1

30
1007×4007
52×52/26×26
5/7.0
18.8kg
75.9
1007×4007
40×40
5/6.5
14.8Kg
60.0
1220×3660
38×38
5/6.5
14.7Kg
65.6
1220×3660
38×38/19×19
5/6.5
18.4Kg
82.2

38
1220×3660
38×38
5/6.9
18.7Kg
83.5
1007×4007
40×40
5/6.9
18.8Kg
76.0
1220×3660
25.4×152.4
6.0/8.5
22.5kg
100.5
1220×3660
38.1×152.4
5/6.9
16.0Kg
71.5
1220×3660
38×38/19×19
5/6.9
23.5Kg
105.0

40
1007×3007
40×40
5/7.0
19.8Kg
60.0
1007×4007
40×40
5/7.0
19.8Kg
79.9

50
1220×3660
50×50
5/8.0
21.3Kg
95.1


If you need more information about how to choose the FRP grating, please press.
