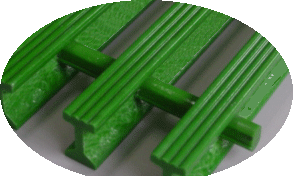

Superfrp™ pultruded grating is assembled pultruded H-sections or T-sections linked by rod per distance into panel. The distance is decided by an open area rate. Pultruded grating provides extremely high unidirectional strength and stiffness, since H-section or T-section can provide great mechanical load whereas tubes do not provide mechanical load just work as connector. Pultruded grating is stronger than molded grating because of the higher glass content in pultruded products.

Superfrp™ pultruded grating can span long distance for any given load. Of cause, pultruded grating can be gritted or covered panel. However molded grating is more corrosion resistant than pultruded grating using the same resin system.

We provide pultruded grating as per customer's requirements.

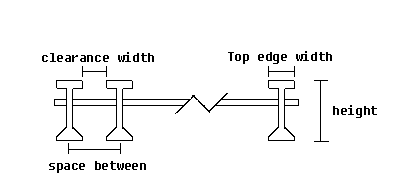

Superfrp™ Pultruded Grating Standard Panel
Type
height
Top edge width
space between
clearance width
Open Area
Estimated weight
inch
inch
inch
inch
%
Kg/m2
I-1040
1"
0.6"
1"
0.4"
40%
17.1
I-1050
1"
0.6"
1.2"
0.6"
50%
14.2
I-1060
1"
0.6"
1.5"
0.9"
60%
11.3
I-1540
1.5"
0.6"
1"
0.4"
40%
22.0
I-1550
1.5"
0.6"
1.2"
0.6"
50%
19.1
I-1560
1.5"
0.6"
1.5"
0.9"
60%
16.2

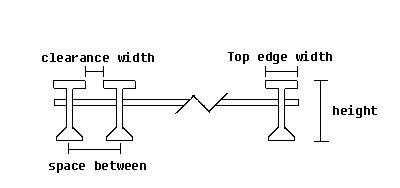

Type
height
Top edge width
space between
clearance width
Open Area
Estimated weigh
inch
inch
inch
inch
%
Kg/m2
T-2033
2"
1.0"
1.5"
0.5"
33%
21.0
T-2050
2"
1.0"
2.0"
1.0"
50%
16.5
